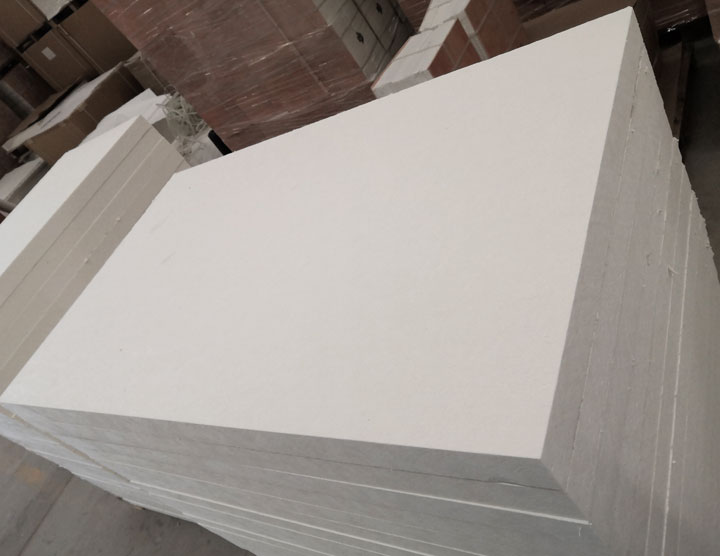

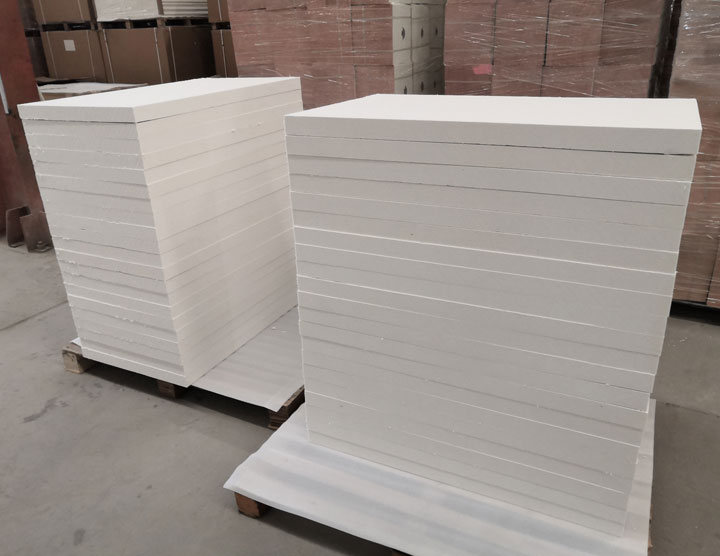

Ceramic Fiber Board

  • Product Description:

    Ceramic fiber board is made of high quality ceramic fiber cotton, after several times of slag removal, vacuum molding, wet production, drying computer polished production.
  • Product Features:

    Ceramic fiber board has the characteristics of precise size, low slag content and low thermal conductivity.
  • Application:

    Ceramic fiber board is widely used in furnace pipe heat treatment system and other fields.

Physical and chemical indicators

Grade Standard High Aluminium Zirconium
Classification Temperature(℃) 1260 1350 1450
Working Temperature(℃) 1100 1250 1350
Density(kg/m3) 280-500
Thermal conductivity by mean temp(w/m.k) 0.085(W/m.k)(400℃)
0.132(W/m.k)(800℃)
0.132(W/m.k)(800℃)
0.180(W/m.k)(1000℃)
Compression Strength(Mpa) 0.5
Chemical Composition(%) Al2O3 42-43 52-53 35
SIO2 53 46 45
ZrO2 15-17
Fe2O3 ≤1.2 ≤0.3 ≤0.2
Na2O+K2O ≤0.5 ≤0.3 ≤0.2
Size(mm) 1000x600x10-50mm 1200x1000x10-50mm
1200x500x10-50mm 900x600x10-50mm
1000x1200x10-50mm 600x400x10-50mm
